Injection-compression molding combines injection filling with compression finishing. Material is partially injected, then the mold closes further to complete shape under pressure. This reduces stress, improves surface finish, and supports complex geometries.

Certain thermoset components require higher dimensional accuracy, improved surface quality, and reduced molding stress than conventional molding processes can consistently achieve. In these situations, Injection-Compression Molding provides an effective solution by combining the advantages of injection molding and compression molding into a single manufacturing process.

Instead of fully closing the mold before injection, the cavity remains partially open during material filling and reaches final thickness during the compression stage. This approach helps improve material distribution while reducing flow-induced defects that commonly occur in complex thermoset parts.

For manufacturers producing precision electrical components, structural composite parts, or demanding industrial products, this process can significantly improve production consistency and overall part performance.

Improved Material Flow for Complex Thermoset Parts

One of the primary challenges in thermoset molding is achieving uniform material distribution before curing begins. Uneven flow can lead to weld lines, trapped air, voids, and dimensional variation.

Thermoset Injection-Compression technology addresses these challenges by allowing the material to flow under lower pressure during filling before final compression occurs.

Benefits include:

More uniform cavity filling

Reduced internal stress

Improved dimensional consistency

Better surface appearance

Lower risk of trapped air

Enhanced mechanical performance

These advantages become increasingly important when producing large parts, thin-wall components, or products with intricate geometries.

Optimized Tooling for High-Precision Manufacturing

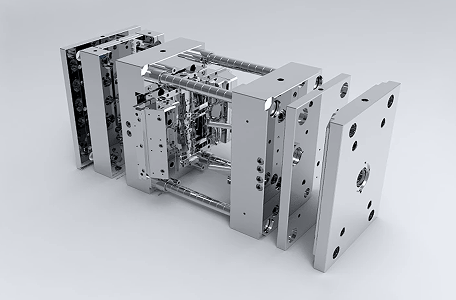

Successful Injection-Compression Molding depends heavily on tooling design. The mold must precisely control cavity movement, compression timing, material flow, and thermal balance throughout the molding cycle.

Our engineering team focuses on:

Accurate compression stroke control

Balanced cavity filling

Precision venting systems

Uniform heating performance

Stable curing conditions

Reliable ejection mechanisms

By integrating these design elements into every project, we help customers achieve repeatable production results while minimizing process variation.

Ideal for Large and Thin-Wall Components

Traditional injection molding often encounters difficulties when manufacturing large thermoset parts with thin wall sections. High injection pressures can create excessive internal stress, leading to distortion, warpage, and surface defects.

Thermoset Injection-Compression processes are particularly suitable for applications requiring:

Large surface areas

Thin-wall geometries

Tight dimensional tolerances

Complex structural features

Enhanced cosmetic appearance

Because compression occurs after filling, lower molding pressure can be used while still achieving complete cavity replication and excellent surface quality.

Applications Across Multiple Industries

Injection-compression tooling is increasingly used in industries that require a combination of precision, durability, and production efficiency.

Common applications include:

Electrical insulation components

Circuit protection devices

Automotive electrical systems

Sensor housings

Industrial equipment components

High-performance composite products

For these applications, reducing internal stress and improving dimensional stability can significantly improve assembly performance and long-term product reliability.

Engineering Support from Design Through Production

Every Injection-Compression Molding project presents unique challenges related to material behavior, part geometry, and production requirements.

Our team provides support throughout the complete tooling development process, including:

Product design review

DFM analysis

Material flow evaluation

Mold engineering

Prototype validation

Production tooling manufacturing

Process optimization support

By combining thermoset processing expertise with precision mold manufacturing, we help customers reduce development risks and accelerate production readiness.
